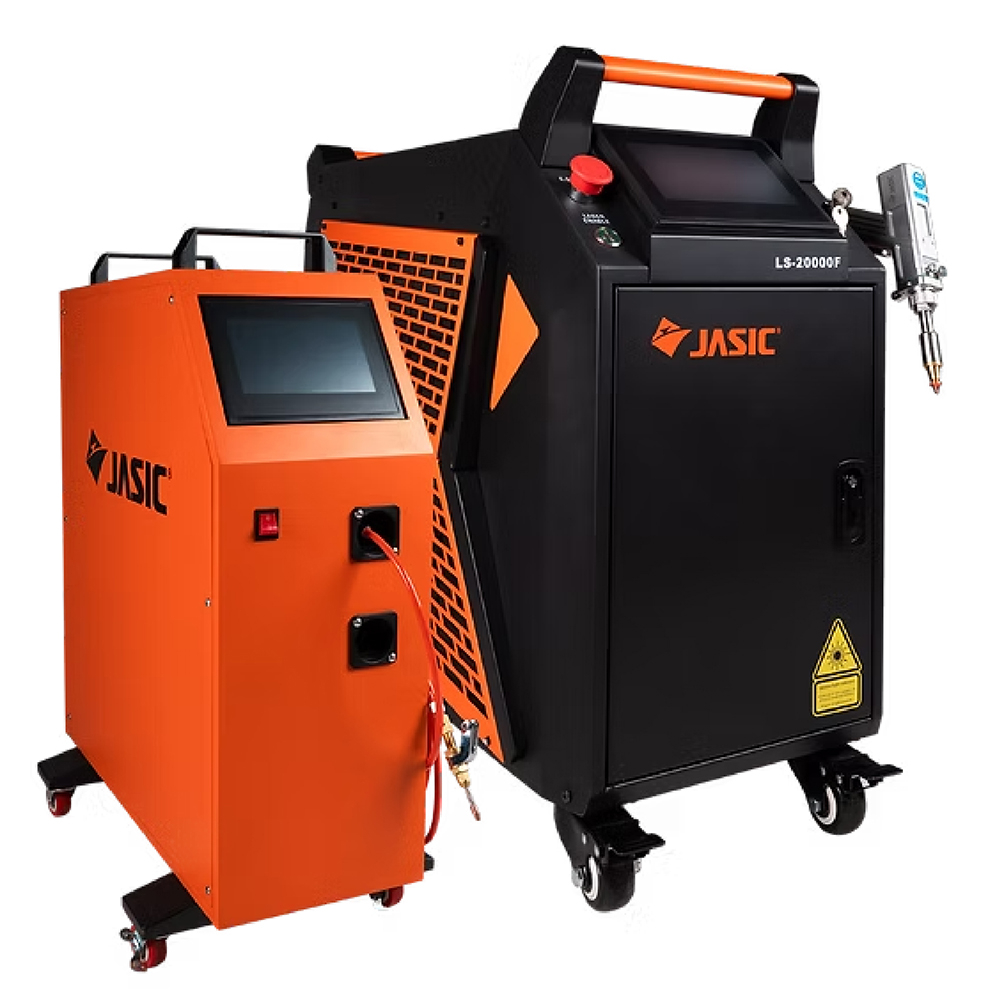

Jasic LS-20000F-D Fibre Laser Welding System 230V

High output 2000W fibre laser welding system with dual wire feed capability, delivering maximum productivity, deeper penetration, and precision welding for industrial fabrication and production environments.

Product Overview

The Jasic LS-20000F Dual Wire Feed system is a top tier handheld fibre laser welding solution designed for high volume fabrication and demanding industrial applications. Using advanced continuous wave laser technology, it produces clean, high strength welds with minimal heat input, significantly reducing distortion and post weld finishing requirements.

This dual feeder configuration increases deposition rates and welding efficiency, enabling faster build up and improved productivity on thicker materials. With its high output 2000W laser source and intuitive touchscreen controls, it is ideal for production environments where speed, consistency and labour savings are critical.

Key Features

  • 2000W fibre laser welding system for maximum performance
  • Dual wire feeder for increased deposition and faster weld speeds
  • Up to 10x faster than traditional TIG welding processes
  • Deeper penetration for thicker materials
  • Continuous wave laser for consistent, high quality welds
  • Minimal heat affected zone (HAZ) reduces distortion

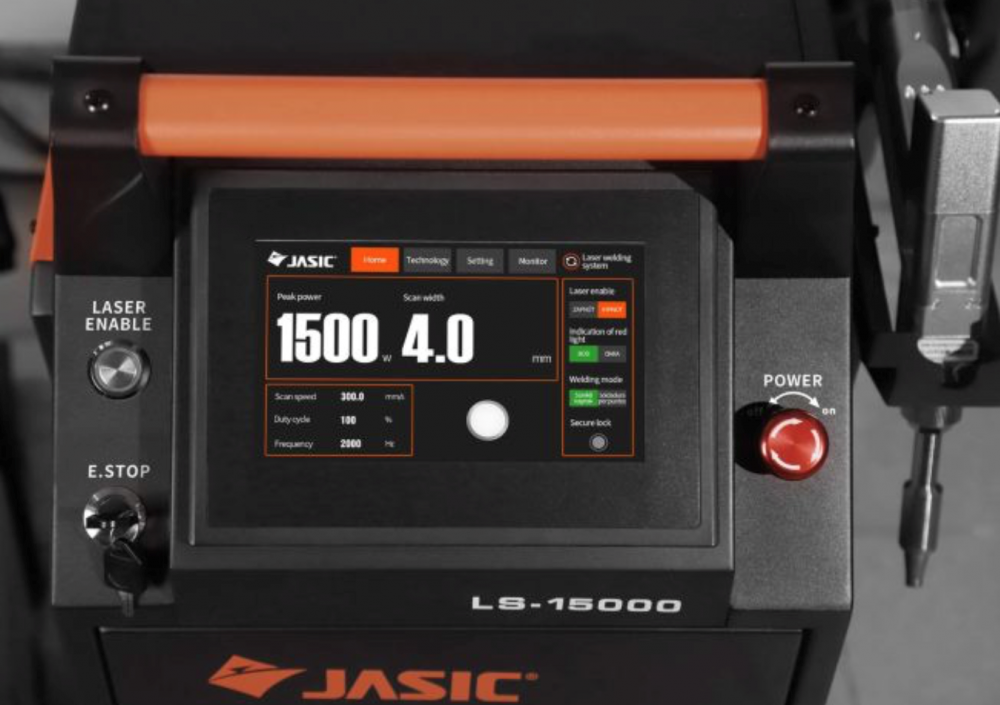

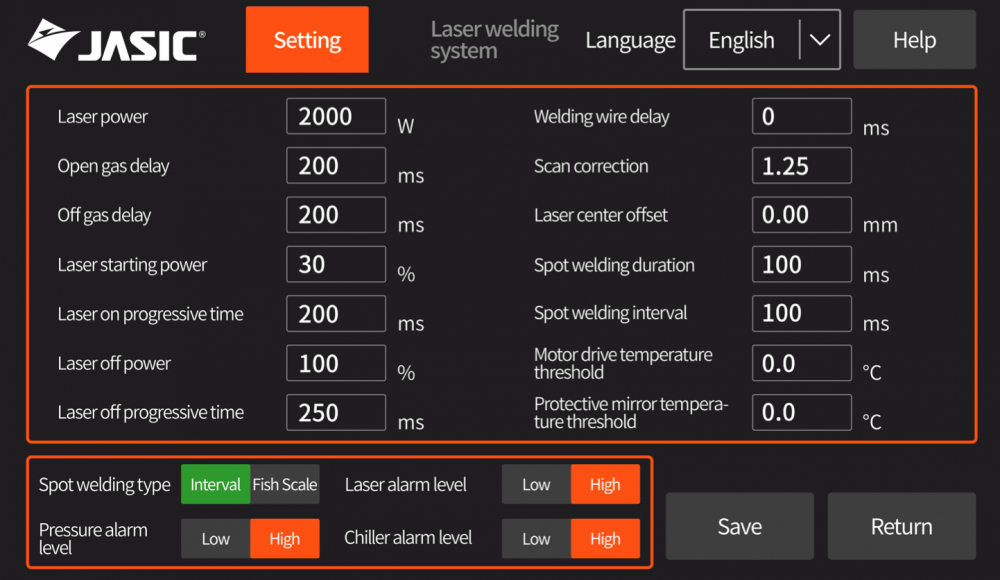

  • Colour touchscreen interface for easy control and setup
  • Water cooled system for high duty cycle operation
  • Spot and continuous welding modes
  • Job storage function for repeatability
  • Compact, mobile design for workshop or site use
  • Low maintenance with long life fibre laser source (100,000+ hours)
  • Model No: LS-20000F-D

Technical Specifications

  • Input Voltage: 1 Phase AC 230V, 50Hz
  • Laser Power: 2000W
  • Laser Type: Continuous Wave Fibre Laser
  • Wavelength: approx. 1080 nm
  • Electro Optical Efficiency: ≥40%
  • Cooling Method: Water cooled
  • Welding Thickness: Up to approx. 6mm (material dependent)
  • Fibre Cable Length: Typically 6m
  • Shielding Gas: Argon / Nitrogen


What’s Included

  • LS-20000F 2000W Laser Welding Power Source

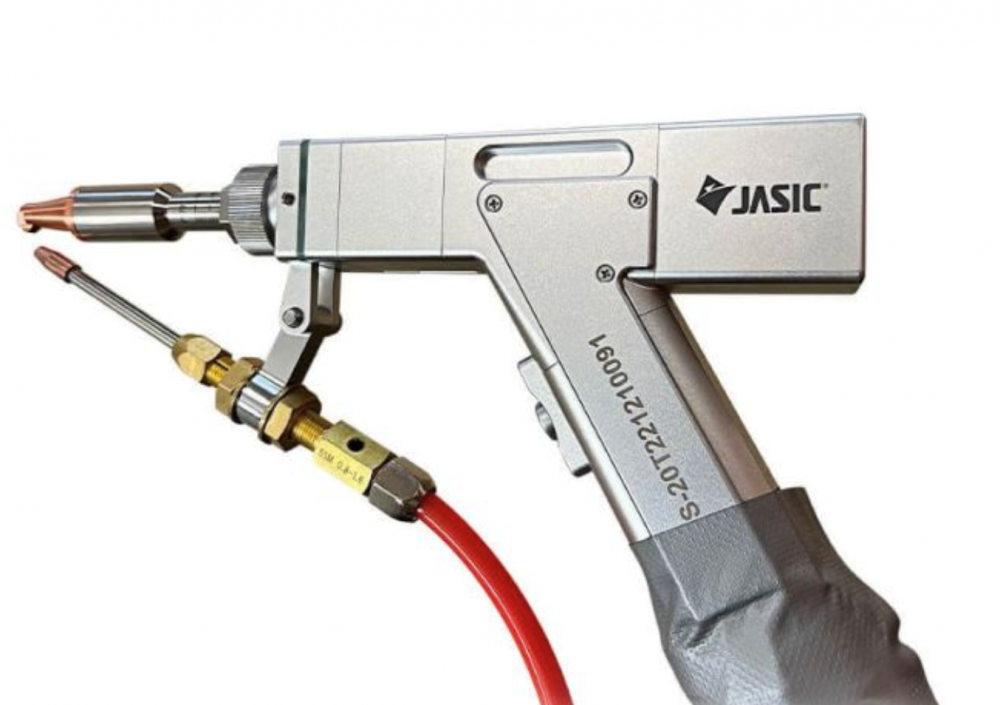

  • Handheld laser welding torch
  • Dual wire feeder system
  • Integrated cooling system
  • Operating manual

Optional Accessories

  • Replacement lenses and consumables
  • Laser safety PPE and protection systems
  • Laser safety enclosures
  • Additional wire feed consumables
