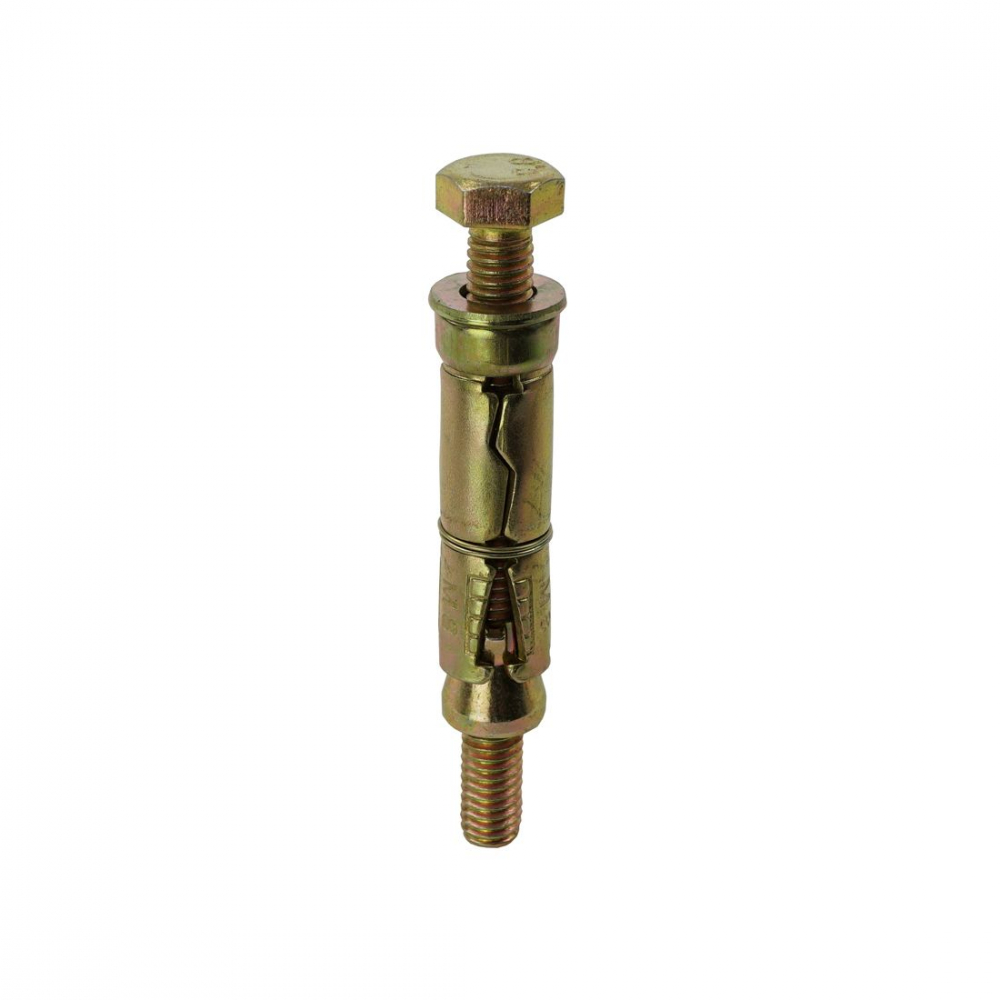

M16:60L Loose Shield Anchor Zinc Plated Masonmate Pack 5

M16:60L Loose Shield Anchor Zinc Plated Masonmate Pack 5

Stock Code: FAW00014489
Manufacturer Part No: 0865L1660
Available for Despatch in 2 working days.
£12.29 (inc VAT) per Pack
£10.24 (exc VAT) per Pack
Quantity: - +

M16:60L Loose Shield Anchor Zinc Plated Masonmate Pack 5

Description
A torque controlled loose bolt shield anchor designed for secure fixing into concrete, solid brick and stone. Installed into the substrate first, allowing the fixture to be positioned before inserting and tightening the bolt for a reliable and strong hold.

Key Features

  • Zinc plated finish for corrosion resistance
  • Three segment expansion shield for strong grip
  • Torque controlled expansion for consistent installation
  • Loose bolt design allows fixture positioning after installation
  • Suitable for concrete, solid brick, stone and concrete block
  • Thread diameter: M16
  • Bolt length: 180mm
  • Maximum fixture thickness: 55mm
  • Drill hole diameter: 25mm
  • Minimum hole depth: 130mm
  • Minimum embedment depth: 115mm
  • Minimum concrete thickness: 230mm
  • Recommended tightening torque: 150Nm
  • Pack quantity: 5 anchors
  • Part No: 0865L1660

Applications

  • Medium to heavy duty masonry fixings
  • Installing structural brackets and supports
  • Securing steelwork and frameworks
  • Construction and site installations
  • Trade and professional use
Quantity5
DiameterM16
Length60L
MaterialZinc Plated
Grip Length60
