Jasic PRO MIG 270 Multi Process W/C Separate 230V Inverter Package (Model JM-272S-WC)
Jasic PRO MIG 270 Multi Process W/C Separate 230V Inverter Package (Model JM-272S-WC)

Jasic PRO MIG 270 Multi Process W/C Separate 230V Inverter Package (Model JM-272S-WC)

Stock Code: FAW00040470
Manufacturer Part No: ZXJM-272S-WC
Available for Despatch in 1 working days.
£2,734.80 (inc VAT) per Each
£2,279.00 (exc VAT) per Each
Quantity: - +

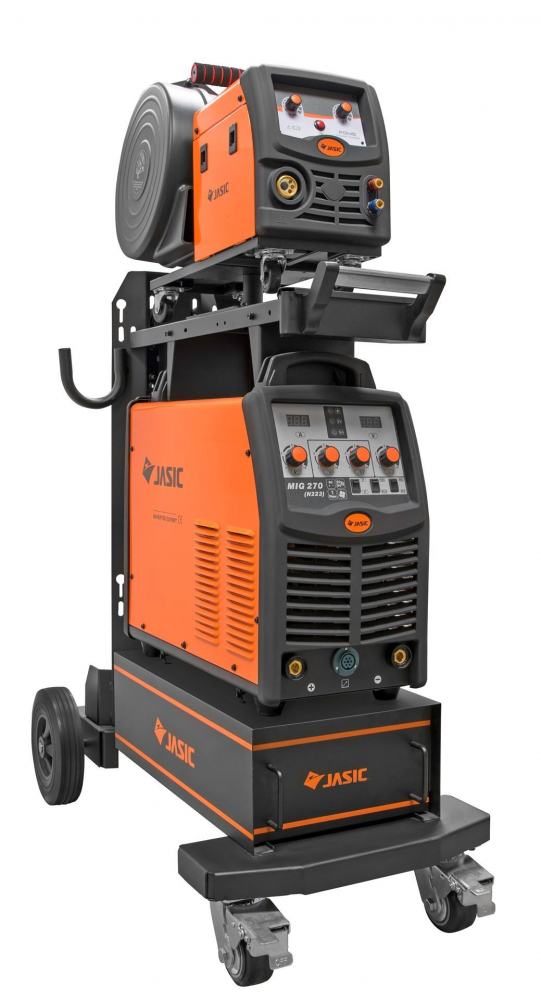

Jasic PRO MIG 270 Multi Process Separate Inverter Package with Water Cooler 230V

Industrial 270 amp separate inverter welding system with 4 roll wire feed unit and integrated water cooling for extended duty cycles and continuous fabrication work.

Product Overview

The Jasic MIG 270 Separate inverter welder is a high performance, industrial multi process welding solution designed for demanding workshop and fabrication environments. Featuring a separate wire feed unit and powerful inverter power source, it delivers consistent arc performance and reliable output for repetitive and heavy duty welding applications.

This configuration includes a water cooling system, allowing significantly improved duty cycle performance and extended torch longevity during high amperage welding. Combined with a 4 roll wire feed system and advanced IGBT technology, the machine provides smooth wire delivery and stable welding performance for prolonged operation.

Key Features

  • MIG/MAG, MMA and Lift TIG multi process capability
  • 270A output for heavy duty fabrication and production work
  • Separate wire feed unit for improved wire delivery and control
  • Water cooling system for high duty cycle and continuous welding
  • 4 roll wire drive system for smooth, consistent feeding
  • Digital amp and volt display for precise setup
  • High duty cycle suitable for repetitive industrial use
  • Advanced IGBT inverter technology
  • Burn back control and wire inching functions
  • 2T/4T trigger operation modes
  • Gas check function and status LED indicators
  • Variable inductance for arc adjustment
  • Generator compatible with AVR protection
  • Heavy duty trolley with capacity for full size gas cylinder
  • Model No: JM-272S-WC

Technical Specifications

  • Input Voltage: 230V single phase
  • Output Range: approx. 30 – 270A
  • Duty Cycle: approx. 270A @ 30%
  • Wire Feed System: 4 roll drive, separate unit
  • Wire Feed Speed: approx. 0 – 16 m/min
  • Voltage Range: approx. 11 – 29V
  • No Load Voltage: approx. 54V
  • Protection Class: IP21S / Class F
  • System Configuration: Separate inverter + wire feeder + water cooler


What’s Included

  • MIG 270 inverter power source
  • Separate 4 roll wire feed unit

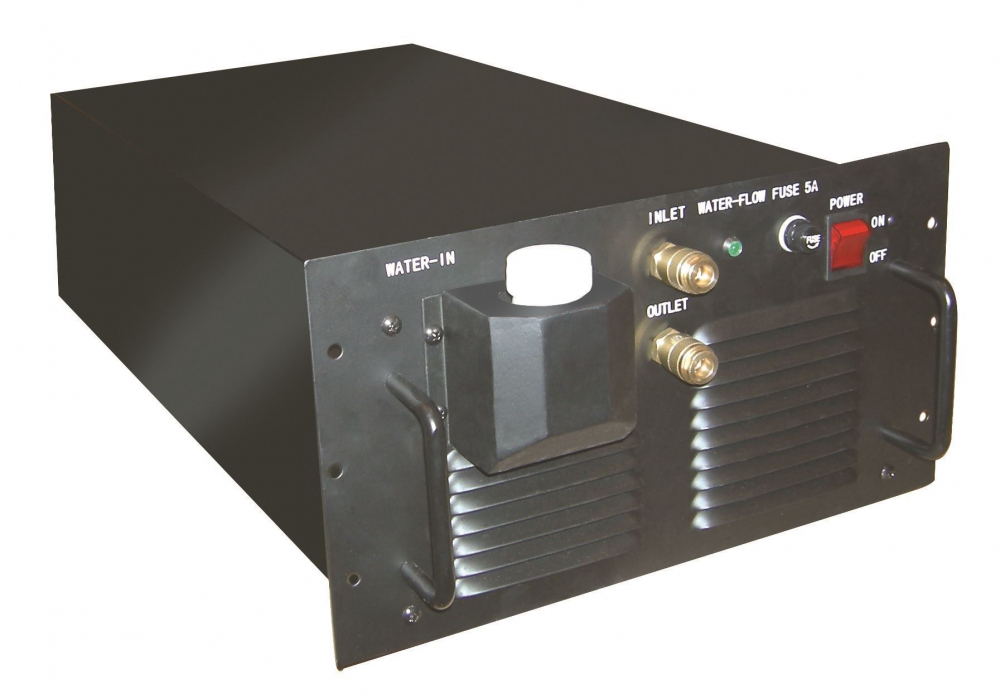

  • Water cooling unit
  • 5m Interconnecting cable set
  • MIG torch (waterâ'cooled compatible)
  • Earth return lead and clamp
  • Gas hose and regulator
  • Heavy-duty trolley system
  • Machine supplied with no plug
  • 5 year warranty (subject to registration)

Optional Accessories

  • Longer interconnecting leads 10m
  • MMA leads package
  • Industrial welding torches
  • Spool gun for aluminium applications
BrandJasic
Ouput Amperage270
Power Supply230V
GeneratorNo
Materials WeldedSteel/Stainless Steel/Alum
Material Thickness (mm) (Steel/St/St/Alum)12/10/2008
Application/UseHeavy Trade
