Jasic EVO POWER ARC 140 230V Inverter (Model EPA-140)

Jasic EVO POWER ARC 140 230V Inverter (Model EPA-140)

Stock Code: FAW00042346
Manufacturer Part No: EPA-140
Available for Despatch in 1 working days.
£238.80 (inc VAT) per Each
£199.00 (exc VAT) per Each
Quantity: - +

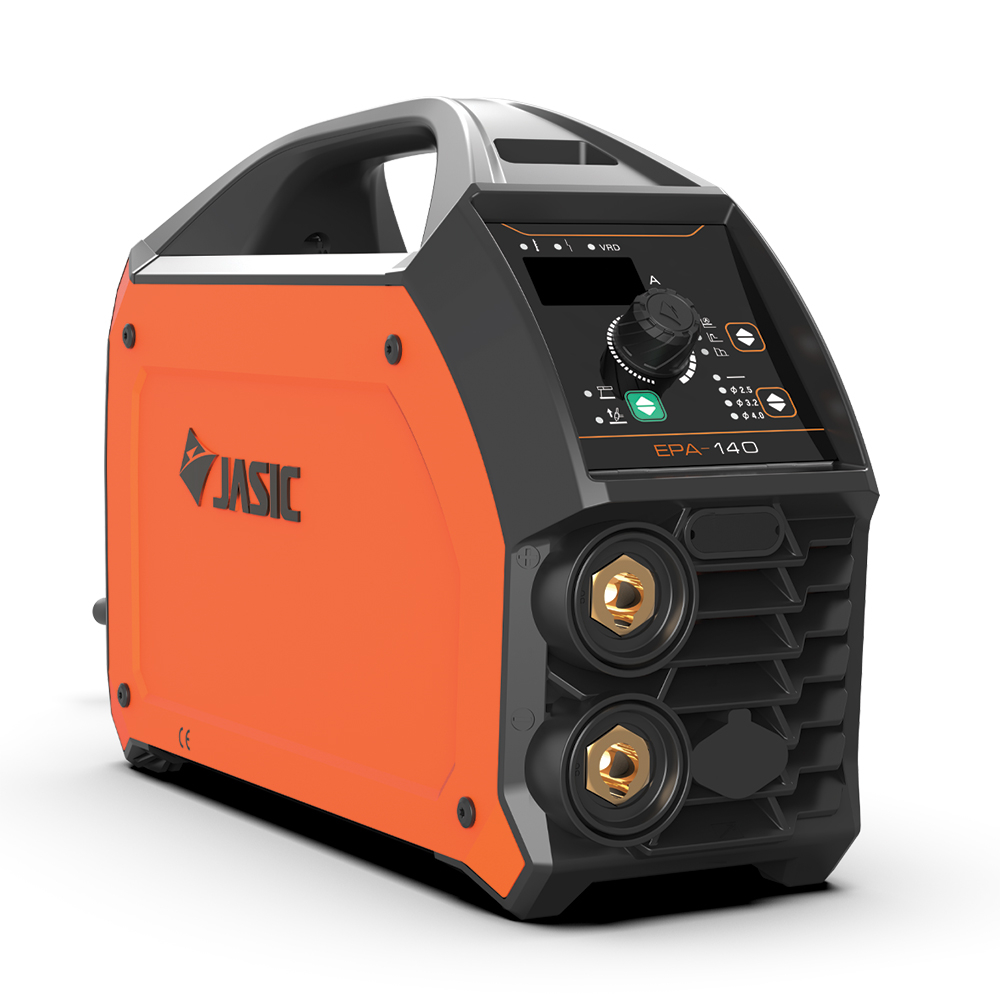

Jasic EVO Power Arc 140 Inverter Welder 230V

Professional grade 140 amp MMA inverter with intelligent synergic control and Lift TIG capability, designed for site work, maintenance and light fabrication.

Product Overview

The Jasic EVO Power Arc 140 is a compact and portable MMA inverter welder designed for professional performance and reliability. Built using advanced inverter technology and a rugged ergonomic design, it delivers a stable and consistent arc suitable for a wide range of welding applications.

Featuring intelligent synergic control, the machine automatically sets optimal welding parameters based on electrode size, simplifying setup and ensuring consistent weld quality. Smart Lift TIG capability provides smooth arc starts with minimal spatter, while adjustable hot start, arc force and anti-stick functions allow full control over welding performance.

Designed for site work, maintenance and general fabrication, the EVO Power Arc 140 also incorporates integrated safety and protection systems including VRD, fan on demand cooling and ABAP airflow technology to maximise reliability and machine lifespan.

Key Features

  • 140A MMA (stick) welding output
  • Intelligent synergic control for simplified setup
  • Smart Lift TIG functionality
  • Adjustable hot start and arc force
  • Anti stick function for improved usability
  • ABAP: Active Balancing Air Passage cooling system
  • Fan on demand for reduced noise and dust intake
  • Voltage Reduction Device (VRD) for enhanced safety
  • Overcurrent and overheat protection
  • Compact, lightweight and rugged ergonomic design
  • 35–50mm dinse cable connections
  • Model No: EPA-140

Technical Specifications

  • Input Voltage: AC 230V, 50/60Hz
  • No Load Voltage: 62V
  • MMA Current Range: 20 – 140A
  • MMA Duty Cycle: 25% @ 40°C
  • TIG Current Range (Lift TIG): 10 – 140A
  • TIG Duty Cycle: 25% @ 40°C
  • MMA Input Power: 6.3 kVA
  • TIG Input Power: 4.2 kVA
  • Efficiency: 85%
  • Power Factor: 0.64
  • Protection Class: IP23S
  • Insulation Class: H
  • Dimensions: 370 × 125 × 255 mm
  • Weight: approx. 5.5 kg
  • Recommended Generator: 10 kVA (AVR required)

Please Note

Machine is supplied without lead set and without a plug.

Warranty

Includes a 5 year manufacturer’s warranty (subject to registration).

BrandJasic
Ouput Amperage140
Power Supply230V
GeneratorNo
Materials WeldedSteel/Stainless Steel
Material Thickness (mm) (Steel/St/St/Alum)05-May
Application/UseLight/DIY
