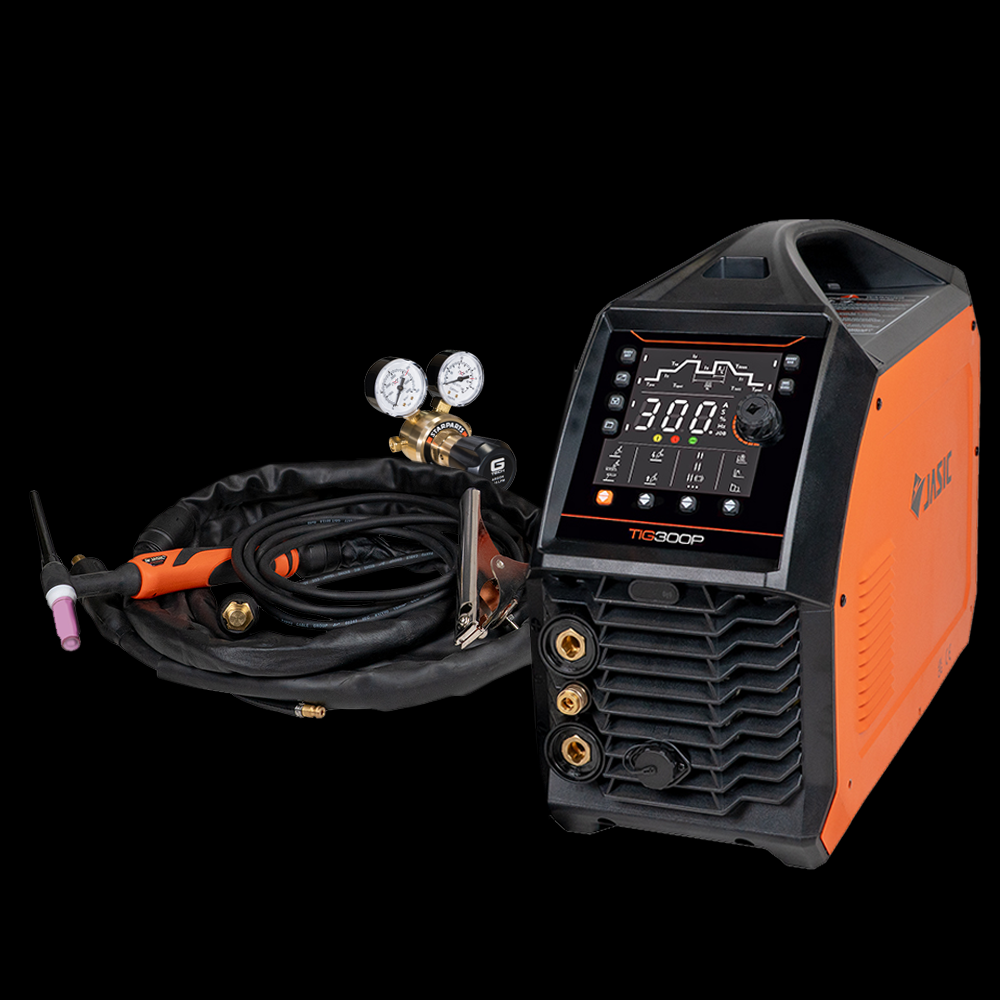

Jasic EVO TIG 300 Pulse DC 400V Inverter Package (Model ET-300P)
Jasic EVO TIG 300 Pulse DC 400V Inverter Package (Model ET-300P)

Jasic EVO TIG 300 Pulse DC 400V Inverter Package (Model ET-300P)

Stock Code: FAW00040174
Manufacturer Part No: ZXET-300P
Available for Despatch in 1 working days.
£1,726.80 (inc VAT) per Each
£1,439.00 (exc VAT) per Each
Quantity: - +

Jasic EVO TIG 300P Pulse DC Inverter Package 400V

High-output 300 amp DC TIG inverter welder with advanced pulse control and three-phase power, engineered for industrial fabrication, workshop production, and demanding site applications.

Product Overview

The Jasic EVO TIG 300P DC Pulse inverter is a professional grade welding system designed for precision TIG welding in demanding environments. Featuring advanced inverter technology and full pulse functionality, it delivers excellent arc stability, energy efficiency, and consistent weld quality.

Built for industrial use, this three-phase machine offers modular flexibility with air or water-cooled configurations and a wide range of remote control options, making it ideal for fabrication workshops and heavy-duty applications.

Key Features

  • DC TIG pulse welding for steel, stainless steel, and ferrous materials
  • 300A output for heavy-duty welding
  • Three-phase 400V input for industrial environments
  • Full pulse control for precise heat input and weld consistency
  • ClearVision HD digital display for clear parameter control
  • Dash-Arc HF ignition for reliable arc starts (99%+ success rate)
  • HF and Lift TIG options for flexibility
  • Program memory storage for repeatable welding setups
  • Smart Gas technology optimises shielding gas usage
  • Intelligent fan and cooling control system
  • AVR generator-friendly operation
  • Compatible with wired, wireless, and app-based remote controls
  • Optional water cooling for extended duty cycles
  • Model No: ET-300P

Technical Specifications

  • Input Voltage: 400V, 3-phase
  • TIG Output Range: 5 – 300A
  • MMA Output Range: approx. 10 – 270A
  • Duty Cycle: approx. 40% @ max output (40°C)
  • Process: DC TIG Pulse / MMA
  • Power Capacity: approx. 8.5 kVA (TIG)
  • Protection Class: IP23S
  • Dimensions: approx. 558 × 230 × 416 mm
  • Weight: approx. 18.2 kg

What’s Included

  • EVO TIG 300P inverter power source
  • Air-cooled TIG torch and lead set
  • Argon regulator and gas hose
  • Earth return lead
  • Machine supplied with no plug
  • 5 year warranty (subject to registration)

Optional Accessories

  • Water cooling unit (LC-40)
  • Foot pedal (wired or wireless)
  • Handheld or app-based remote controls
  • Tungsten electrodes and filler rods
  • Argon gas cylinder
BrandJasic
Ouput Amperage300
Power Supply400V
GeneratorNo
Materials WeldedSteel/Stainless Steel
Material Thickness (mm) (Steel/St/St/Alum)10/10/
Application/UseProduction
