Jasic EVO TIG 320 Pulse AC/DC 400V Inverter Package (Model ET-320PACDC)
Jasic EVO TIG 320 Pulse AC/DC 400V Inverter Package (Model ET-320PACDC)

Jasic EVO TIG 320 Pulse AC/DC 400V Inverter Package (Model ET-320PACDC)

Stock Code: FAW00040176
Manufacturer Part No: ZXET-320PACDC
Available for Despatch in 1 working days.
£2,418.00 (inc VAT) per Each
£2,015.00 (exc VAT) per Each
Quantity: - +

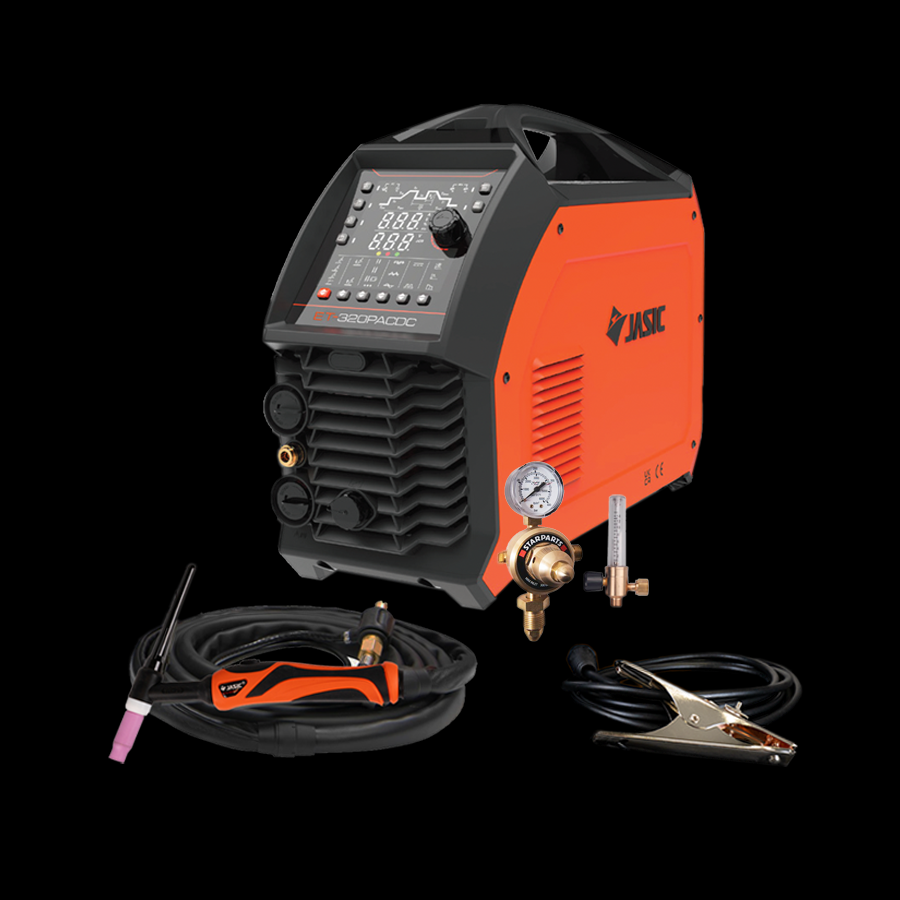

Jasic EVO TIG 320P Pulse AC/DC Inverter Package 400V

High performance 320 amp AC/DC TIG inverter with advanced pulse control, designed for aluminium, stainless steel and multi material welding in demanding industrial and fabrication environments.

Product Overview

The Jasic EVO TIG 320P AC/DC inverter (ET-320P-ACDC) is a professional grade welding system designed for precise TIG welding across a wide range of materials including aluminium, stainless steel, and non-ferrous metals. Featuring advanced inverter technology, pulse functionality and hybrid AC waveform control, it delivers exceptional arc stability and high quality weld results.

Built for industrial use, this three phase machine offers full AC/DC capability with multiple waveform options, digital control and flexible remote operation. Its robust design and intelligent control features make it ideal for fabrication workshops, pipework, and production welding applications.

Key Features

  • AC/DC TIG welding for aluminium, stainless steel and multi material applications
  • 320A output for heavy duty welding
  • Three phase 400V input for industrial environments
  • Full pulse control for precise heat input and weld consistency
  • Multi and hybrid wave AC technology for advanced aluminium welding
  • Selectable AC waveforms (sine, square, triangular and mixed)
  • Auto tungsten tip shaping for improved AC arc performance

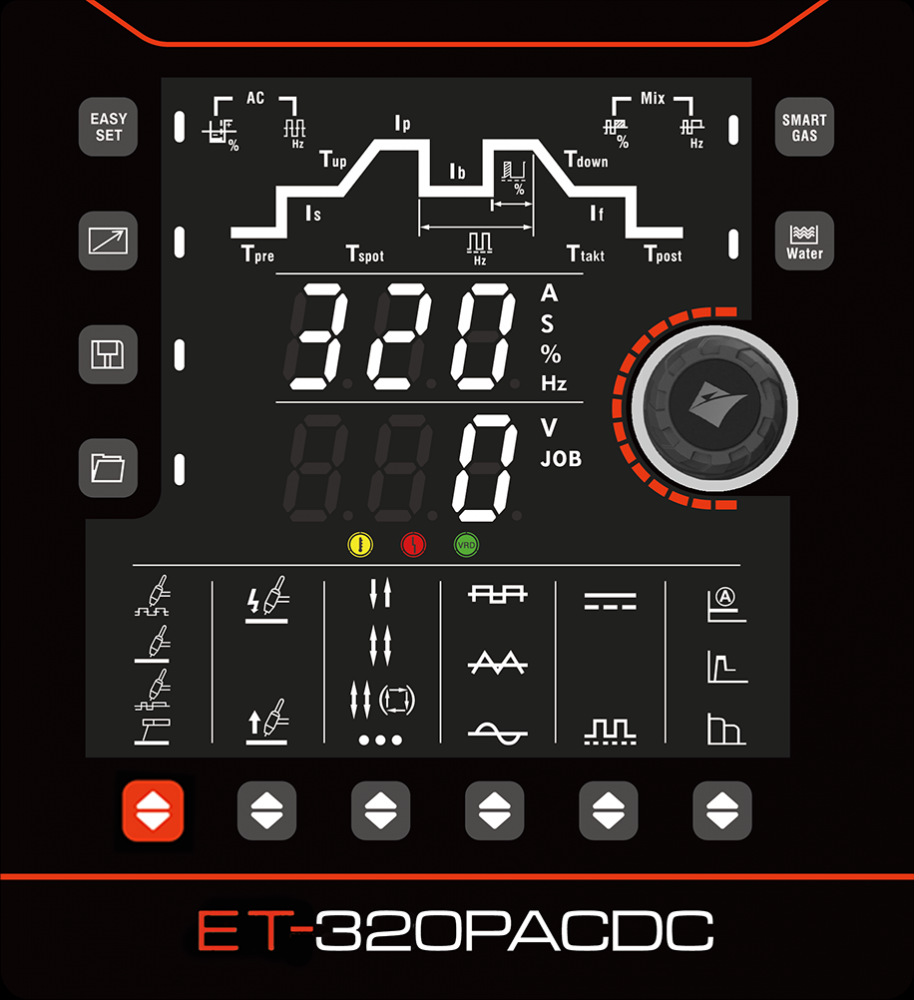

  • ClearVision HD digital display for easy parameter adjustment
  • Dash Arc HF ignition for reliable arc starts (99%+ success rate)
  • HF and Lift TIG ignition options
  • Program memory storage for repeatable welding setups
  • Smart Gas technology optimises shielding gas usage
  • Intelligent fan and cooling control system
  • 2T / 4T / Spot and Cycle trigger modes
  • MMA capability with Hot Start, Anti Stick and Arc Force
  • Compatible with wired, wireless and app based remote controls
  • Optional LC 40 water cooling for extended duty cycles
  • Model No: ET-320P-ACDC

Technical Specifications

  • Input Voltage: 400V, 3 phase
  • TIG Output Range: DC 10 – 320A / AC 20 – 320A
  • MMA Output Range: 10 – 270A
  • Duty Cycle: 30% @ max output (40°C)
  • Process: AC/DC TIG Pulse / MMA
  • No Load Voltage: approx. 71–72V
  • Power Capacity: approx. 10.1 kVA (TIG)
  • Efficiency: ≥80%
  • Power Factor: 0.94
  • Protection Class: IP23S
  • Insulation Class: H
  • Dimensions: approx. 568 × 230 × 416 mm
  • Weight: approx. 23.8 kg


What’s Included

  • EVO TIG 320P AC/DC inverter power source
  • Air cooled TIG torch (4m)
  • Earth return lead and clamp
  • Argon regulator and gas hose with fittings
  • Flowmeter
  • Connection leads and accessories
  • Machine supplied with no plug
  • 5 year warranty (subject to registration)

Optional Accessories

  • LC 40 water cooling unit
  • Trolley (TR 03)
  • Foot pedal control (wired or wireless)
  • Handheld and app based remote controls
  • Tungsten electrodes and filler rods
  • Argon gas cylinders
BrandJasic
Ouput Amperage320
Power Supply400V
GeneratorNo
Materials WeldedSteel/Stainless Steel/Alum
Material Thickness (mm) (Steel/St/St/Alum)10/10/2010
Application/UseProduction
