Jasic EVO TIG 320 Pulse AC/DC W/C 400V Inverter Package (Model ET-320PACDC-WC)
Jasic EVO TIG 320 Pulse AC/DC W/C 400V Inverter Package (Model ET-320PACDC-WC)

Jasic EVO TIG 320 Pulse AC/DC W/C 400V Inverter Package (Model ET-320PACDC-WC)

Stock Code: FAW00040177
Manufacturer Part No: ZXET-320PACDC-WC
Available for Despatch in 1 working days.
£3,358.80 (inc VAT) per Each
£2,799.00 (exc VAT) per Each
Quantity: - +

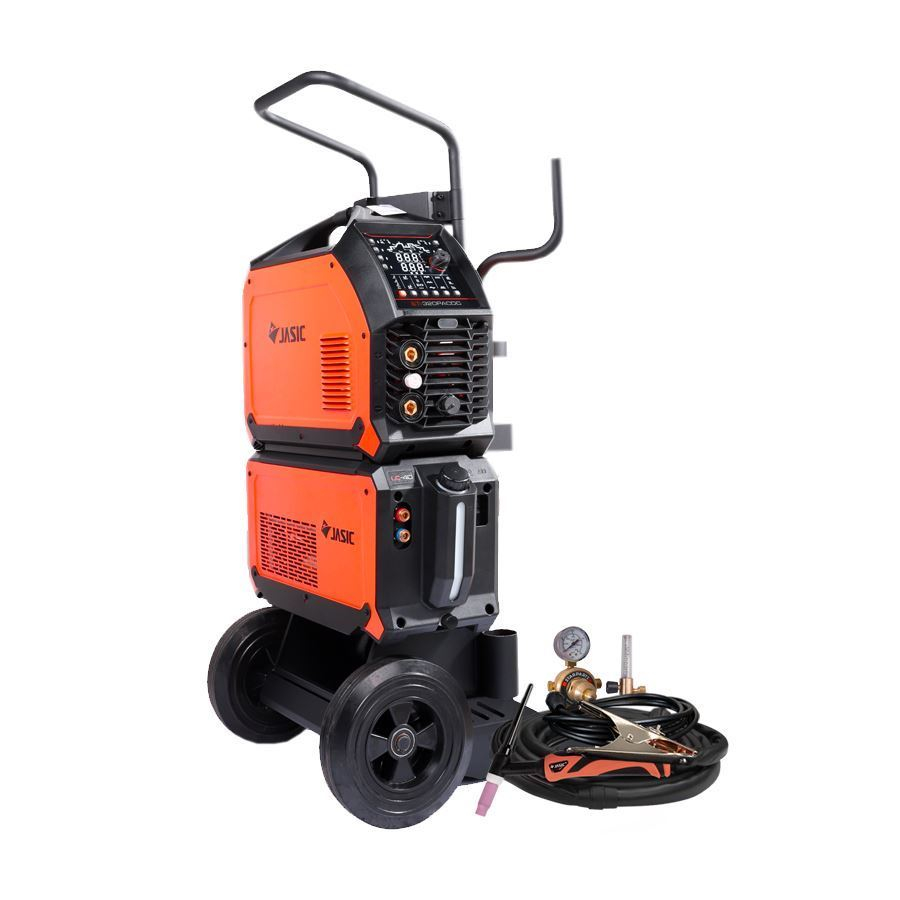

Jasic EVO TIG 320P Pulse AC/DC Inverter Package with Water Cooler and Trolley 400V

High performance 320 amp AC/DC TIG inverter with integrated water cooling, designed for aluminium, stainless steel and multi material welding in demanding industrial and fabrication environments.

Product Overview

The Jasic EVO TIG 320P AC/DC Water Cooled inverter (ET-320PACDC-WC) is a professional grade welding system engineered for precision TIG welding across a wide range of materials including aluminium, stainless steel and non-ferrous metals. Featuring advanced inverter technology, pulse functionality and hybrid AC waveform control, it delivers exceptional arc stability and high quality weld results.

Supplied as a complete industrial package with LC 40 water cooler and trolley system, this three phase machine is built for extended duty cycles and continuous welding applications. Its advanced digital interface, multiple AC waveforms and intelligent control features make it ideal for fabrication workshops, pipework and production environments.

Key Features

  • AC/DC TIG welding for aluminium, stainless steel and multi material applications
  • 320A output for heavy duty and continuous welding
  • Three phase 400V input for industrial environments
  • Integrated LC 40 water cooling system for extended duty cycles
  • Full pulse control for precise heat input and weld consistency
  • Multi and hybrid wave AC technology for advanced aluminium welding
  • Selectable AC waveforms (sine, square, triangular and mixed)
  • Auto tungsten tip shaping for consistent AC arc starts

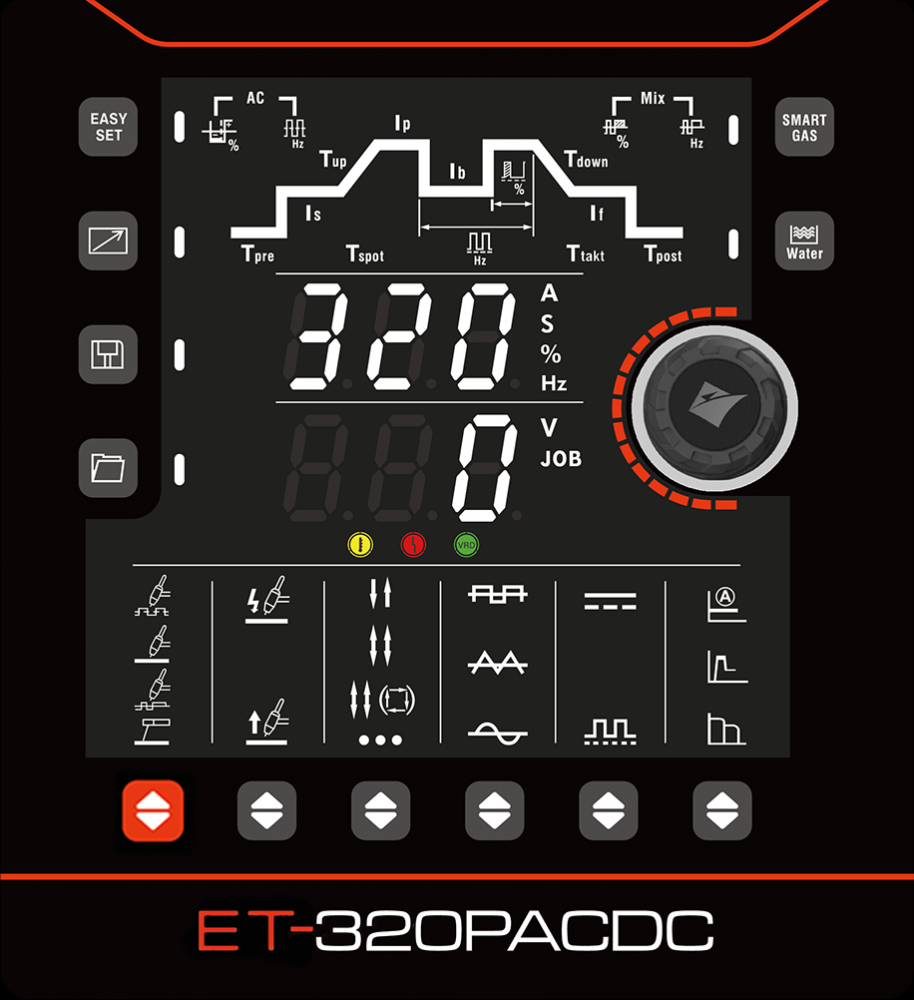

  • ClearVision HD digital display for easy parameter control
  • Dash Arc HF ignition for reliable arc starts (99%+ success rate)
  • HF and Lift TIG ignition options
  • Program memory storage for repeatable welding setups
  • Smart Gas technology optimises shielding gas post flow
  • Intelligent fan and cooler control system
  • 2T / 4T / Spot and Cycle trigger modes
  • MMA capability with Hot Start, Anti Stick and Arc Force
  • Compatible with wired, wireless and app based remote controls
  • Model No: ET 320-ACDC-WC

Technical Specifications

  • Input Voltage: 400V, 3 phase
  • TIG Output Range: DC 10 – 320A / AC 20 – 320A
  • MMA Output Range: 10 – 270A
  • Duty Cycle: 30% @ max output (40°C)
  • Process: AC/DC TIG Pulse / MMA
  • No Load Voltage: approx. 72V
  • Power Capacity: approx. 10.1 kVA (TIG)
  • Efficiency: ≥80%
  • Power Factor: ≥0.9
  • Protection Class: IP23S
  • Insulation Class: H
  • Dimensions (Power Source): approx. 558 × 230 × 416 mm
  • Weight (Power Source): approx. 23.8 kg


What’s Included

  • EVO TIG 320P AC/DC inverter power source
  • LC 40 water cooler unit
  • Trolley system (site ready with cylinder support)
  • Water cooled TIG torch (4m)
  • Earth return lead and clamp
  • Argon regulator and flowmeter
  • Gas hose and connection leads
  • Machine supplied with no plug
  • 5 year warranty (subject to registration)

Optional Accessories

  • Foot pedal control (wired or wireless)
  • Handheld and app based remote controls
  • Tungsten electrodes and filler rods
  • Argon gas cylinders
  • Protective welding equipment and consumables
BrandJasic
Ouput Amperage320
Power Supply400V
GeneratorNo
Materials WeldedSteel/Stainless Steel/Alum
Material Thickness (mm) (Steel/St/St/Alum)10/10/2010
Application/UseProduction
