Jasic PRO MIG 270 Multi Process Separate 230V Inverter Package (Model JM-272S)
Jasic PRO MIG 270 Multi Process Separate 230V Inverter Package (Model JM-272S)

Jasic PRO MIG 270 Multi Process Separate 230V Inverter Package (Model JM-272S)

Stock Code: FAW00014349
Manufacturer Part No: ZXJM-272S
Available for Despatch in 1 working days.
£2,718.00 (inc VAT) per Each
£2,265.00 (exc VAT) per Each
Quantity: - +

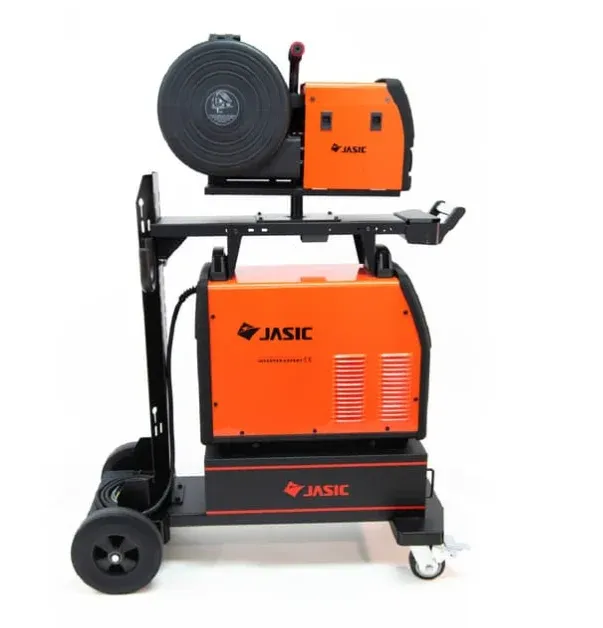

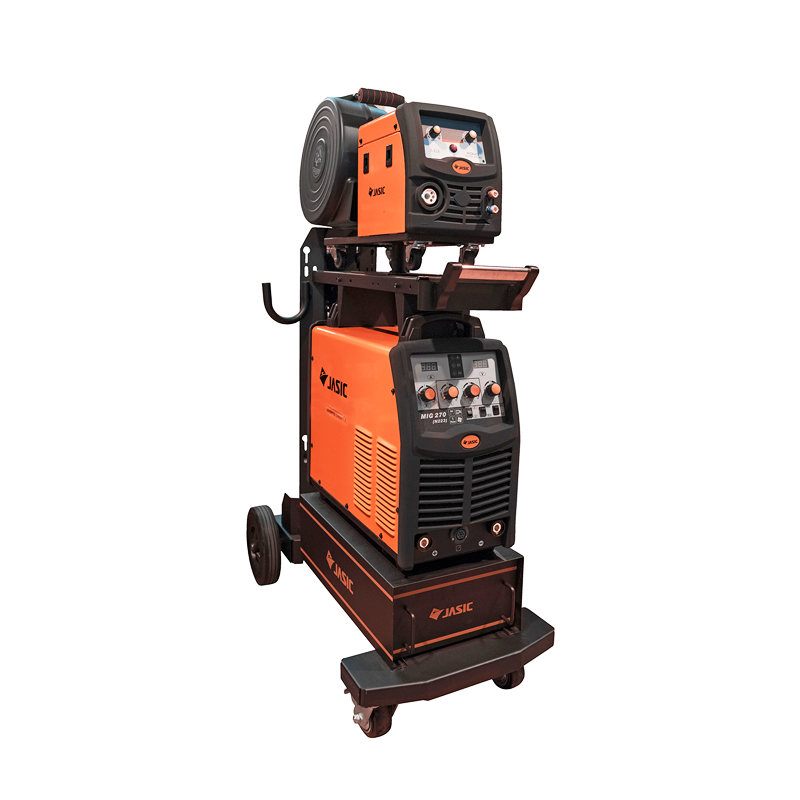

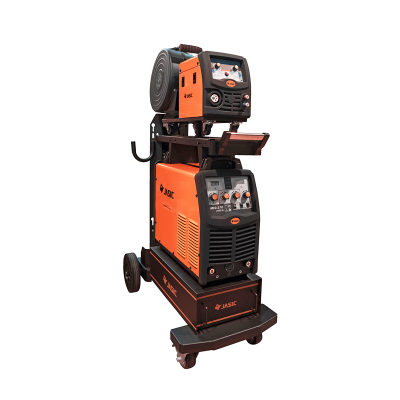

Jasic PRO MIG 270 Multi Process Separate Inverter Package 230V

High performance 270 amp separate inverter welding system with 4 roll wire feed unit, multi process capability, and industrial duty cycle for demanding fabrication work.

Product Overview

The Jasic PRO MIG 270 Separate inverter welder is a professional grade multi process welding solution designed for heavy duty workshop and fabrication environments. Featuring a separate wire feed unit and powerful inverter power source, it delivers excellent welding characteristics, high output, and reliable performance for repetitive weld cycles.

Built with advanced IGBT technology and a 4 roll wire feed system, the machine ensures stable arc performance and consistent wire delivery, particularly suited for longer welding runs and demanding applications. With MIG/MAG, MMA and Lift TIG capability, it offers versatility across a wide range of materials and fabrication tasks.

Key Features

  • MIG/MAG, MMA and Lift TIG multi process capability
  • 270A output for heavy duty fabrication work
  • Separate wire feed unit for improved wire delivery and flexibility
  • 4 roll wire drive system for smooth and reliable feeding
  • Digital amp and volt display for precise control
  • High duty cycle for prolonged welding operations
  • Advanced IGBT inverter technology
  • Burn back control and wire inching functions
  • 2T/4T trigger operation modes
  • Gas check function and status indicators
  • Adjustable inductance for arc optimisation
  • Generator compatible (AVR protection)
  • Heavy duty trolley for full size gas cylinder
  • Model No: JM-272S

Technical Specifications

  • Input Voltage: 230V single phase
  • Output Range: approx. 30 – 270A
  • Duty Cycle: approx. 270A @ 30%
  • Wire Feed System: 4 roll drive, separate unit
  • Wire Feed Speed: approx. 0 – 16 m/min
  • Voltage Range: approx. 11 – 29V
  • No Load Voltage: approx. 54V
  • Protection Class: IP21S / Class F
  • Dimensions: approx. 1020 x 505 x 1460 mm
  • Weight: approx. 100 kg


What’s Included

  • MIG 270 inverter power source
  • Separate 4 roll wire feed unit
  • 5m interconnecting cable
  • MIG torch
  • Earth return lead and clamp
  • Gas hose and regulator
  • Heavy-duty trolley
  • Machine supplied with no plug
  • 5 year warranty (subject to registration)

Optional Accessories

  • Water cooler for high duty cycle work
  • Longer interconnection leads 10m
  • MMA leads package
  • Heavy-duty industrial torches
BrandJasic
Ouput Amperage270
Power Supply230V
GeneratorNo
Materials WeldedSteel/Stainless Steel/Alum
Material Thickness (mm) (Steel/St/St/Alum)12/10/2008
Application/UseHeavy Trade
