Jasic EVO MIG 350S Multi Process Separate Inverter Package with Water Cooler 400V

Advanced 350 amp three phase digital welding system with separate wire feed unit and integrated water cooling for continuous duty industrial fabrication and production welding.

Product Overview

The Jasic EVO MIG 350S water cooled inverter is a high performance industrial multi process welding system designed for heavy duty fabrication and production environments. Featuring a 3 phase inverter power source and separate 4 roll wire feed unit, it delivers consistent arc performance, high output, and superior weld quality for demanding applications.

Equipped with an integrated water cooling system, the machine is optimised for extended welding periods and high amperage operation. Advanced ARM and DSP digital microprocessor control ensures precise parameter adjustment and stable arc characteristics, while synergic and manual modes provide flexibility across a wide range of materials and thicknesses.

Key Features

  • MIG/MAG, MMA and DC Lift TIG multi process capability
  • 350A output for industrial and production welding
  • Water cooling system for continuous duty operation
  • Advanced ARM and DSP digital inverter technology

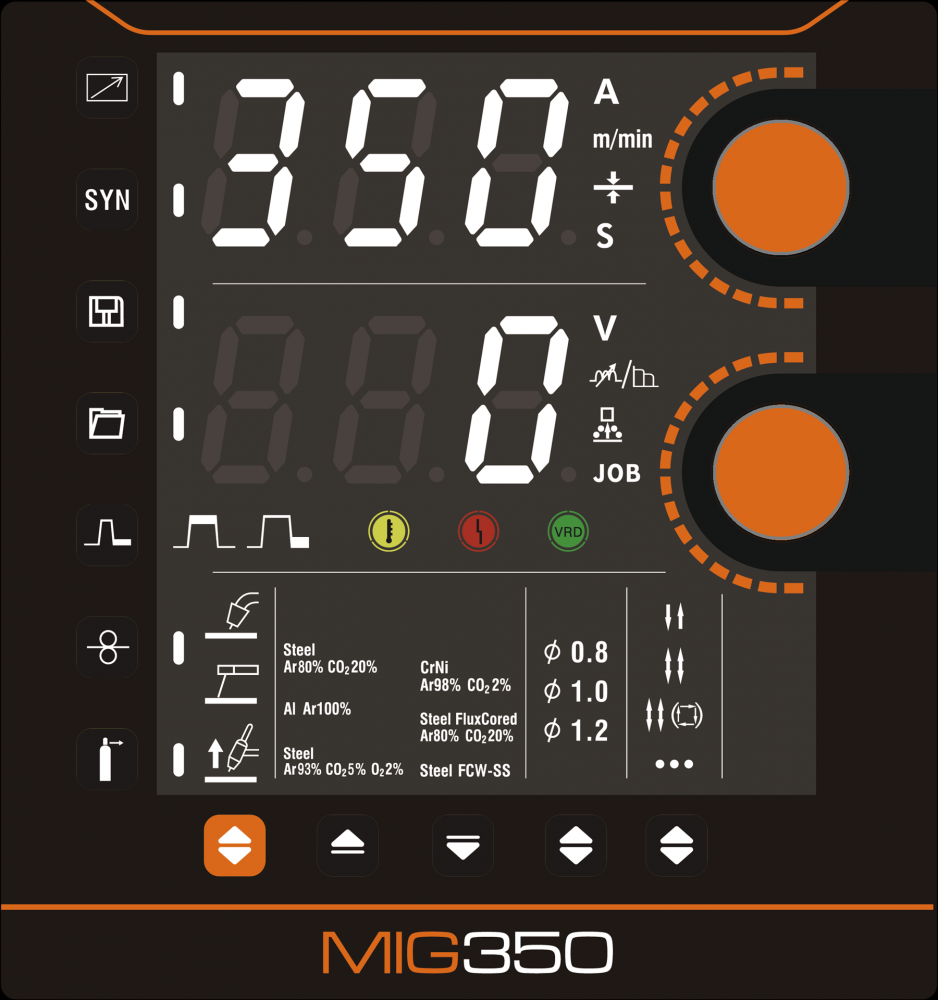

  • Separate wire feed unit with ClearVision HD digital display
  • Full synergic and manual welding control
  • Enhanced dual drive 4 roll wire feeder for smooth delivery
  • Program memory storage for repeat jobs
  • 2T / 4T / Cycle / Spot trigger modes
  • Crater fill and adjustable inductance for improved weld quality
  • On demand cooling and auto sleep mode (low power usage)
  • Remote control compatibility including app based control
  • USB Type C port for updates and connectivity
  • IP23S protection for industrial environments
  • Model No: EM-350S-WC

Technical Specifications

  • Input Voltage: 400V three phase
  • Output Range: approx. 30 – 350A
  • Duty Cycle: approx. 350A @ 40–50%
  • Wire Feed System: dual drive 4 roll separate unit
  • Wire Feed Speed: approx. 2 – 24 m/min
  • Wire Spool Size: D300 (industrial size)
  • Protection Class: IP23S
  • Efficiency: approx. 85–88%


What’s Included

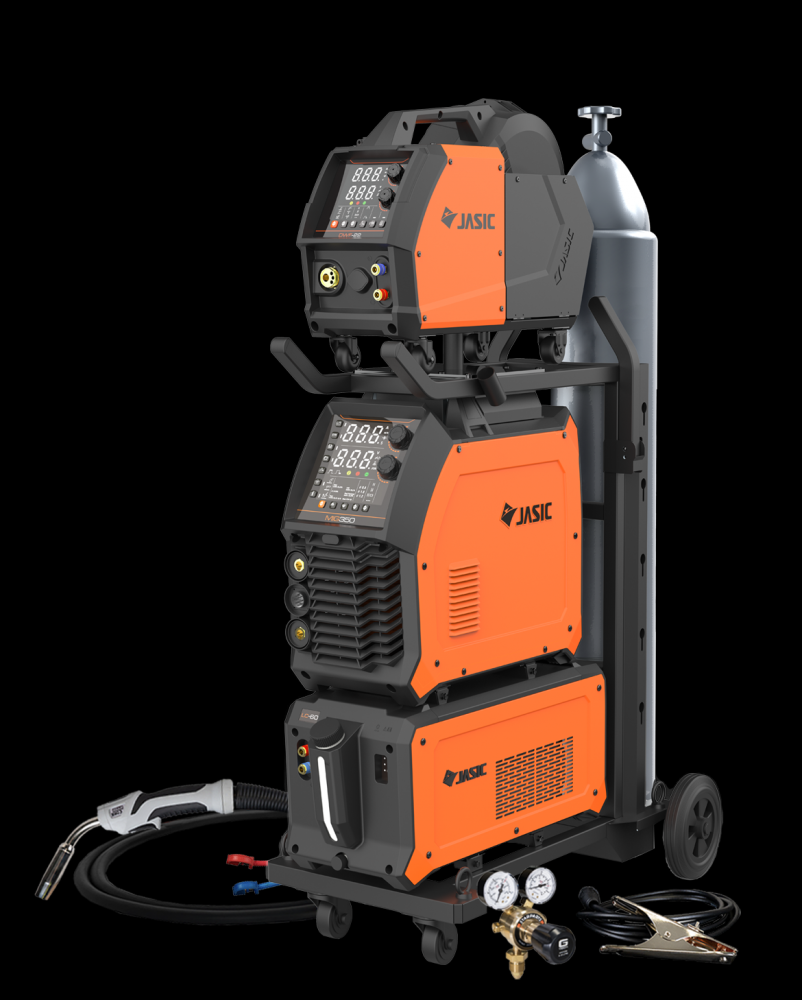

  • EVO MIG 350S inverter power source
  • Separate 4 roll wire feed unit
  • Water cooling unit
  • 5m Interconnection cable
  • Water cooled MIG torch
  • Earth return lead and clamp
  • Gas hose and regulator
  • Heavy duty trolley with integrated storage
  • Machine supplied with no plug
  • 5 year warranty (subject to registration)

Optional Accessories

  • Extended interconnecting cables (10m / 15m / 20m)
  • Push pull or spool gun for aluminium
  • Remote control systems (wired / wireless)
  • Bluetooth module for mobile app control
BrandJasic
Ouput Amperage350
Power Supply400V
GeneratorNo
Materials WeldedSteel/Stainless Steel/Alum
Material Thickness (mm) (Steel/St/St/Alum)18/15/12
Application/UseProduction
