Jasic PRO MIG 350 Synergic Multi Process Separate 400V Inverter Package c/w 10Mtr Interconnecting Ca
Jasic PRO MIG 350 Synergic Multi Process Separate 400V Inverter Package c/w 10Mtr Interconnecting Ca

Jasic PRO MIG 350 Synergic Multi Process Separate 400V Inverter Package c/w 10Mtr Interconnecting Ca

Stock Code: FAW00042339
Manufacturer Part No: ZXJM-350P-10M
Available for Despatch in 1 working days.
£6,258.00 (inc VAT) per Each
£5,215.00 (exc VAT) per Each
Quantity: - +

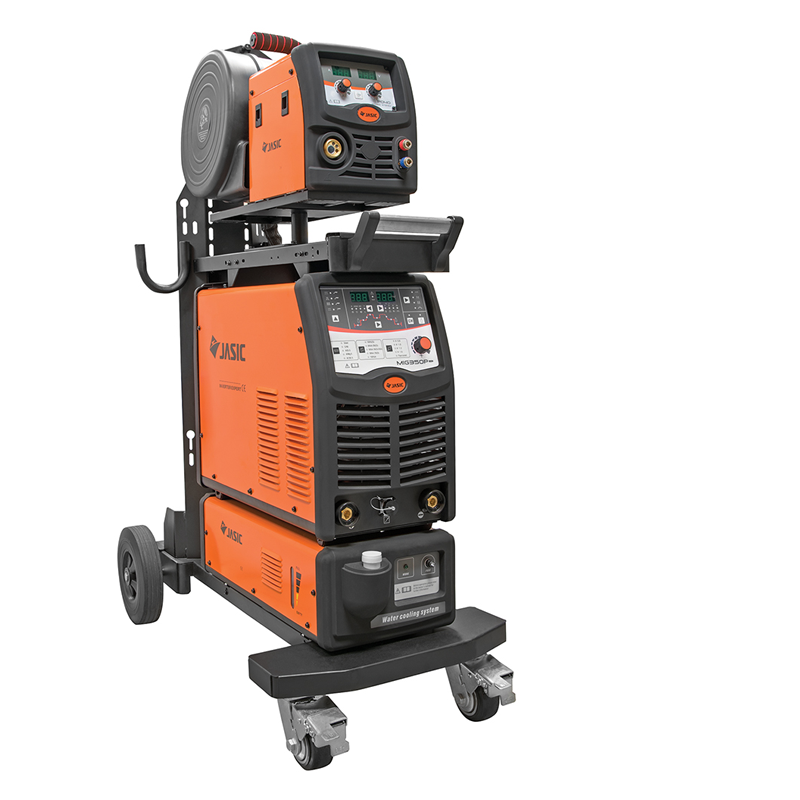

Jasic PRO MIG 350P Synergic Multi Process Separate Inverter Package with Water Cooler and 10m Interconnecting cables 400V

Premium 350 amp three phase pulse MIG welding system with separate wire feed unit, water cooling, and 10 metre interconnecting cables for superior weld quality and maximum working flexibility.

Product Overview

The Jasic PRO MIG 350P Synergic Multi Process Separate inverter welder with water Cooler is a high-performance pulse MIG system designed for precision fabrication and industrial welding applications. Featuring a 3 phase inverter power source and separate 4 roll wire feed unit, it delivers outstanding arc stability, reduced spatter, and consistent weld quality across a wide range of materials.

This upgraded configuration includes both an integrated water cooling system and 10 metre interconnecting leads. The pulse and double pulse functions provide enhanced weld appearance and control, while the longer lead set allows increased separation between the power source and feeder, ideal for large fabrication bays and complex assemblies.

Key Features

  • MIG/MAG pulse, double pulse and MMA multi-process capability
  • 350A output for heavy fabrication and industrial use
  • Pulse and double pulse welding for superior weld quality
  • 10m interconnecting cables for extended working range
  • Advanced DSP digital inverter technology
  • Synergic control with pre-programmed curves for common materials
  • Separate 4 roll wire feed unit with encoder feedback
  • Adjustable welding parameters including pulse frequency

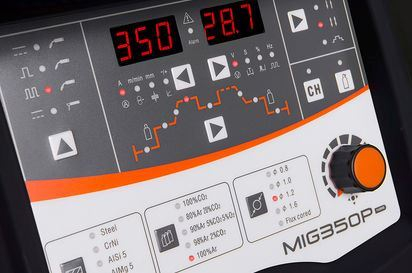

  • Digital control interface for precise setup
  • Reduced spatter and improved weld finish
  • 2T / 4T / Spot welding modes
  • Self-diagnostic system for reliability
  • Integrated water cooling system for continuous duty welding
  • Generator compatible (AVR required)
  • Heavy-duty inverter trolley for full-size gas cylinder
  • Model No: JM- 350P-10M

Technical Specifications

  • Input Voltage: 400V three phase
  • Output Range: approx. 10 – 350A
  • Duty Cycle: approx. 350A @ 60%
  • Wire Feed System: 4-roll separate unit
  • Wire Feed Speed: approx. 1 – 18 m/min
  • Wire Spool Size: 300mm (D300)
  • Protection Class: IP21S / Class F
  • System Configuration: Inverter + feeder + water cooler + 10m leads
  • Weight: approx. 117 kg

What’s Included

  • MIG 350P inverter power source
  • Separate 4 roll wire feed unit
  • Water cooling unit
  • 10m interconnection cable set
  • MIG welding torch
  • Earth return lead and clamp
  • Gas hose and regulator
  • Heavy-duty trolley
  • Machine supplied with no plug
  • 5 year warranty (subject to registration)

Optional Accessories

  • Longer interconnecting leads (15m / 20m)
  • Push-pull torch or spool gun for aluminium welding
  • Remote control systems
  • Advanced welding consumables
BrandJasic
Ouput Amperage350
Power Supply400V
GeneratorNo
Materials WeldedSteel/Stainless Steel/Alum
Material Thickness (mm) (Steel/St/St/Alum)18/15/12
Application/UseProduction
